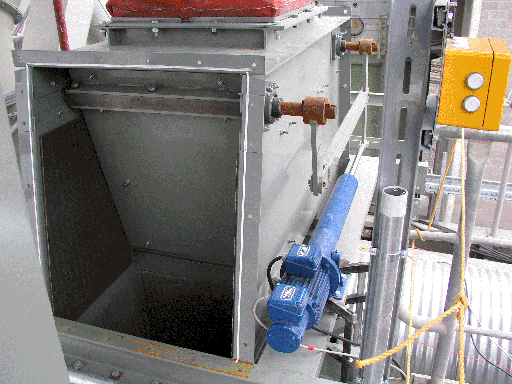

Selection chart
ACME SCREW
| Actuator | Nominal | Nominal | Stroke Range | Run | Start-up | Nominal | Motor | Stall | |||
| Type | Force | Actuator | min. | max | Torque | Motor | Pol | Current | Torque | ||
| Speed | @Nominal Force | Size | @ Load/460V | ||||||||
| lbf. | inch/sec. | inch | inch | lb-ft. | lb-ft. | kW | P | A | lb-ft. | ||
| T1A4 | 550 | 1.6 | 3.9 | 39.4 | 2.56 | 3.44 | 0.30 | 8 | 1.13 | 5.75 | AD |
| T1A4 | 550 | 2.4 | 3.9 | 39.4 | 2.56 | 3.44 | 0.44 | 6 | 1.10 | 5.68 | SD |
| T1A4 | 550 | 3.3 | 3.9 | 39.4 | 2.56 | 3.44 | 0.65 | 4 | 1.48 | 6.27 | AD |
| T1A4 | 550 | 6.6 | 3.9 | 39.4 | 2.56 | 3.44 | 1.30 | 2 | 2.47 | 9.74 | AD |
| T1A5 | 1100 | 2.4 | 3.9 | 39.4 | 6.75 | 9.04 | 0.90 | 8 | 2.49 | 14.90 | AD |
| T1A5 | 1100 | 2.8 | 3.9 | 39.4 | 6.75 | 9.04 | 0.90 | 6 | 2.90 | 13.13 | AD |
| T1A5 | 1100 | 4.7 | 3.9 | 39.4 | 6.75 | 9.04 | 1.80 | 4 | 3.10 | 18.81 | AD |
| T1A6 | 2200 | 2.8 | 7.9 | 70.9 | 16.75 | 22.44 | 2.60 | 8 | 4.70 | 41.67 | AD |
| T1A6 | 2200 | 3.7 | 7.9 | 70.9 | 16.75 | 22.44 | 2.60 | 6 | 5.50 | 36.36 | SD |
| T1A6 | 2200 | 5.7 | 7.9 | 70.9 | 16.75 | 22.44 | 3.60 | 4 | 7.81 | 39.16 | AD |
| T1A7 | 4500 | 5.7 | 7.9 | 78.7 | 45.58 | 60.96 | 5.00 | 6 | 14.32 | 99.05 | AD |
| AD=Accelerated Delivery | |||||||||||
| SD=Standard Delivery | |||||||||||
BALL SCREW
| Actuator | Nominal | Nominal | Stroke Range | Run | Start-up | Nominal | Motor | Stall | |||
| Type | Force | Actuator | min. | max | Torque | Motor | Pol | Current | Torque | ||
| Speed | @Nominal Force | Size | @ Load/460V | ||||||||
| lbf. | inch/sec. | inch | inch | lb-ft. | lb-ft. | kW | P | A | lb-ft. | ||
| K1A4 | 550 | 3.3 | 3.9 | 39.4 | 2.58 | 2.95 | 0.3 | 8 | 1.14 | 5.68 | AD |
| K1A4 | 550 | 4.2 | 3.9 | 39.4 | 2.58 | 2.95 | 0.44 | 6 | 1.11 | 5.68 | AD |
| K1A4 | 550 | 6.6 | 3.9 | 39.4 | 2.58 | 2.95 | 0.65 | 4 | 1.50 | 6.27 | AD |
| K1A4 | 550 | 13.5 | 3.9 | 39.4 | 2.58 | 2.95 | 1.3 | 2 | 2.50 | 9.74 | AD |
| K1A5 | 1100 | 4.2 | 3.9 | 39.4 | 6.93 | 7.82 | 0.9 | 8 | 2.55 | 14.90 | SD |
| K1A5 | 1100 | 5.7 | 3.9 | 39.4 | 6.93 | 7.82 | 0.9 | 6 | 2.97 | 13.05 | AD |
| K1A5 | 1100 | 8.5 | 3.9 | 39.4 | 6.93 | 7.82 | 1.3 | 4 | 3.33 | 13.72 | AD |
| K1A6 | 2200 | 5.7 | 7.9 | 63.0 | 17.26 | 19.55 | 2.6 | 8 | 4.84 | 41.67 | SD |
| K1A6 | 2200 | 7.6 | 7.9 | 63.0 | 17.26 | 19.55 | 2.6 | 6 | 5.67 | 36.36 | AD |
| K1A7 | 4500 | 8.5 | 7.9 | 78.7 | 41.45 | 46.98 | 5 | 6 | 13.04 | 99.05 | AD |
| AD=Accelerated Delivery | |||||||||||
| SD=Standard Delivery | |||||||||||
